Product Details

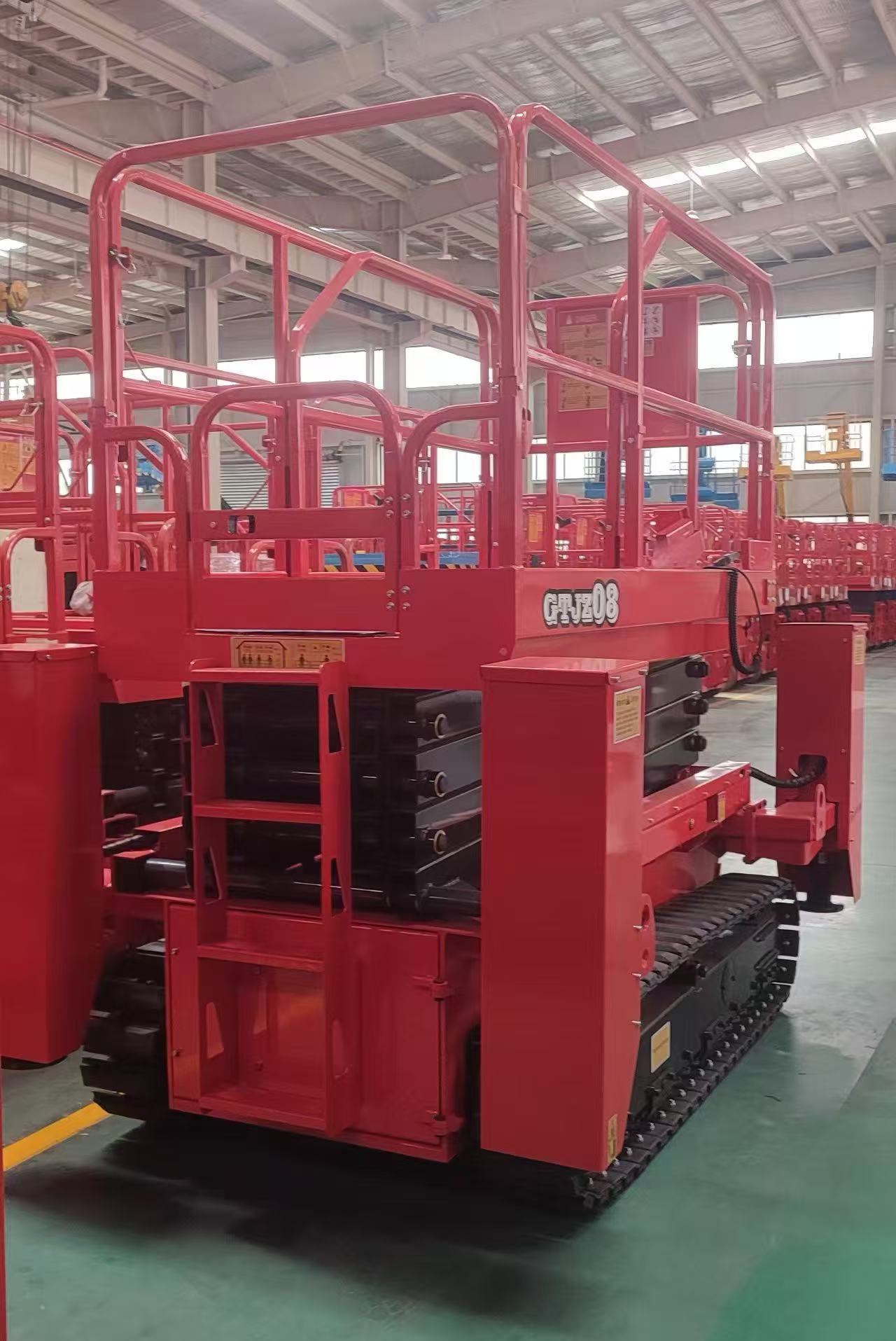

The steel-tracked scissor lift platform is powered by a high-performance motor, delivering robust power and excellent off-road capability, enabling smooth operation even on muddy and uneven terrain. Equipped with one-touch leveling legs, it ensures stable lifting on sloped surfaces. The steel-tracked chassis enhance stability, durability, and load-bearing capacity while minimizing noise and preventing damage to asphalt surfaces, ensuring superior driving performance.
Designed for rugged outdoor terrains and complex construction environments, this crawler-type electric hydraulic lift excels in adaptability, operating efficiently in off-grid or challenging conditions. It features built-in maintenance-free lead-acid batteries, eliminating the need for external power and enabling effortless slope climbing.  Constructed from premium thickened steel for enhanced structural strength, the platform includes overload and tilt protection systems for added safety and reliability. Dual controls (upper and lower) allow operators to manage lifting, movement, and steering from the platform.  The electroplated paint finish employs electrophoresis technology, ensuring uniform coating coverage—including hard-to-reach areas like inner cavities, welds, and edges—significantly boosting corrosion resistance. This durable, fade-resistant finish extends product lifespan and elevates its premium quality.




Product Parameters

HWZTLD-GTJZ08

Size

Work platform size(length×wide×high)

2270×1120×1130mm

Overall dimensions of the machine(A×B×C)

2675×1605×2460mm

Overall dimensions (length×wide×high,guardrail folded)

2675×1605×1885mm

Table extension size G

900mm

Performance

Maximum working height

10.00m

Maximum platform height H

8.00m

Safe working load

450kg

Extended Platform safe working load

110kg

Minimum ground clearance

150mm

Track width

230mm

Traveling motor

2×5kw/DC48V

Lifting motor

DC48V/4.5kw

Lifting speed

9-10m/min

Machine driving speed

2Km/h

Battery

Lead acid maintenance free  8×6V/200ah

Charger

48V/30A

Max Climb Capability

30%

Maximum allowable working angle

1.5°/3°

Maximum leveling angle

Direction6.5°broadwise12°

Number of outriggers

4outriggers

Overall weight

3020kg


Standard Configuration

Proportional  control

Automatic brake system

Charging protection system

Tilt Protection system

Emergency descent system

Folding fence

Steel rubber track

Platform self-locking door

Emergency stop button

Standard transport forklift holes

Unidirectional extension platform

Horn

Fault diagnosis

One click leveling

Safety maintenance support rod

Action buzzing

Turning in place

Strobe light

Oil pipe explosion-proof system
