The Mini Scissor Lift Series features a compact size, stylish appearance, flexible mobility, and reliable safety. Its portable design allows easy transport through elevators and confined spaces like stairwells, making it ideal for narrow-area operations. Equipped with automatic movement, an integrated design, and a built-in battery, it operates freely without external power or traction, supporting various working conditions. The large-capacity, maintenance-free battery extends usage time with strong power and endurance. The polyurethane non-marking wheels prevent floor scratches in high-end commercial settings.  Constructed from premium manganese steel, the lift includes overload protection, tilt protection, and pit protection systems for enhanced safety. Dual control systems (upper and ground-level) enable lifting, moving, and steering operations from either position. Maintenance supports ensure safety during servicing.  The electroplated paint finish, applied via electrophoretic coating, provides superior protection to inner cavities, welds, and edges—areas typically vulnerable in traditional coatings—significantly boosting corrosion resistance. This durable, fade-resistant finish extends the product’s lifespan and elevates its premium quality.

Product Parameters

HWGTJZ04

Size

Work platform size(length×wide×high)

1290×716×1130mm

Overall dimensions of the machine(A×B×C)

1430×760×2060mm

Overall dimensions (length×wide×high,guardrail folded)

1430×760×1650mm

Table extension size G

600mm

Performance

Maximum working height

6.00m

Maximum platform height H

4.00m

Safe working load

230kg

Extended Platform safe working load

100kg

Minimum ground clearance

70/15mm

Wheelbase

1.058m

Turning radius(inner wheel/outer wheel)

0.75/1.75m

Lifting/driving motor

24V/1.6kw

Lifting speed

6-9m/min

Machine travel speed(retracted state)

4.2Km/h

Machine travel speed(lifting status)

0.8Km/h

Battery

Lead acid maintenance free  2×12V/80ah

Charger

24V/10A

Max Climb Capability

25%

Maximum allowable working angle

1.5/3°

tyre

Non marking solid tire230×80mm

Overall weight

820kg


Standard Configuration

Proportional

Automatic brake system

Charging protection system

Full range walking

Emergency descent system

Folding fence

Seamless tire

Platform self-locking door

Emergency stop button

Standard transport forklift

Unidirectional extension platform

horn

Fault diagnosis

Automatic pit protection system

Safety maintenance support rod

Action buzzing

Tilt protection system

Strobe light

Oil pipe explosion-proof system

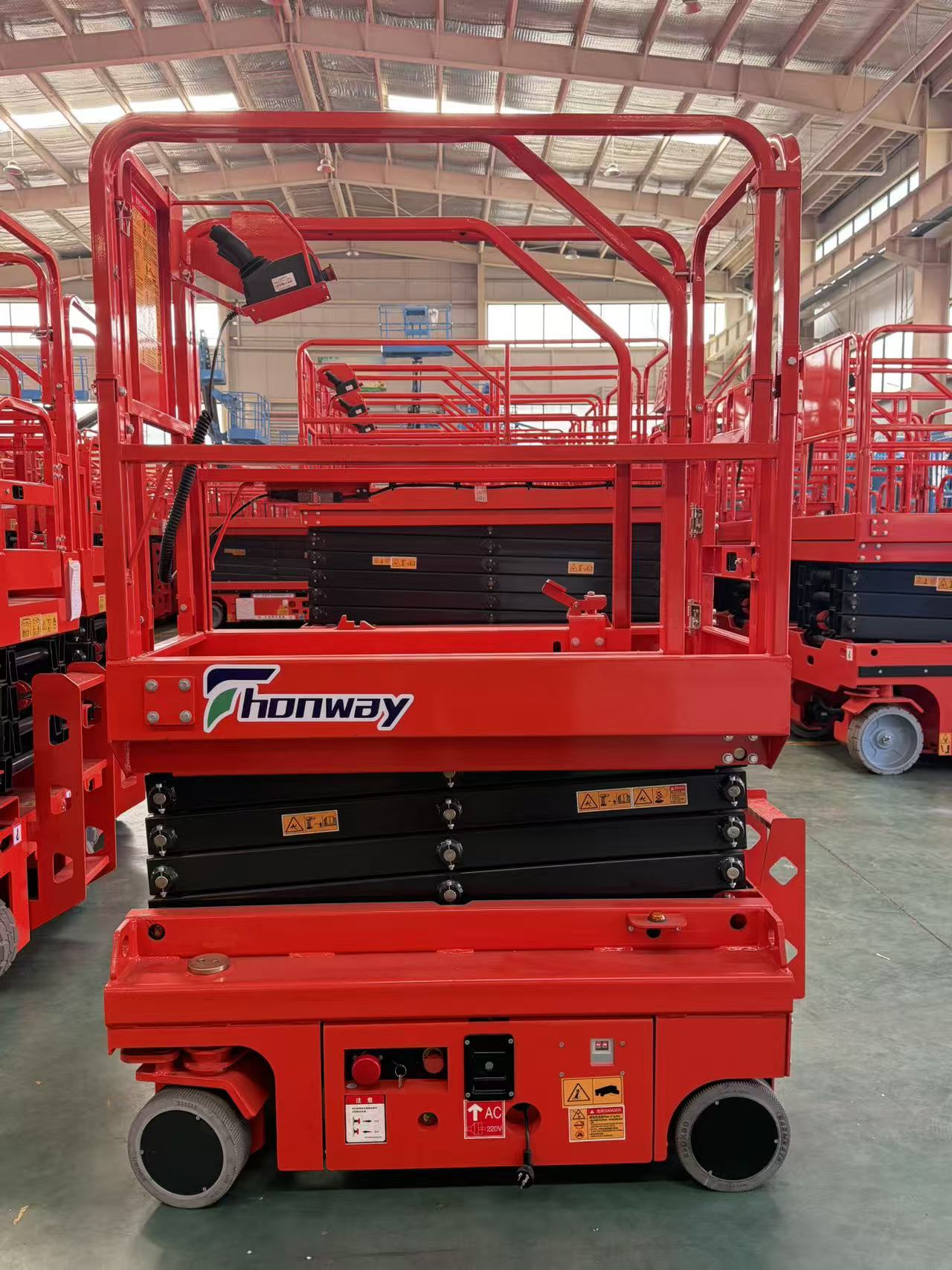

Detail illustration

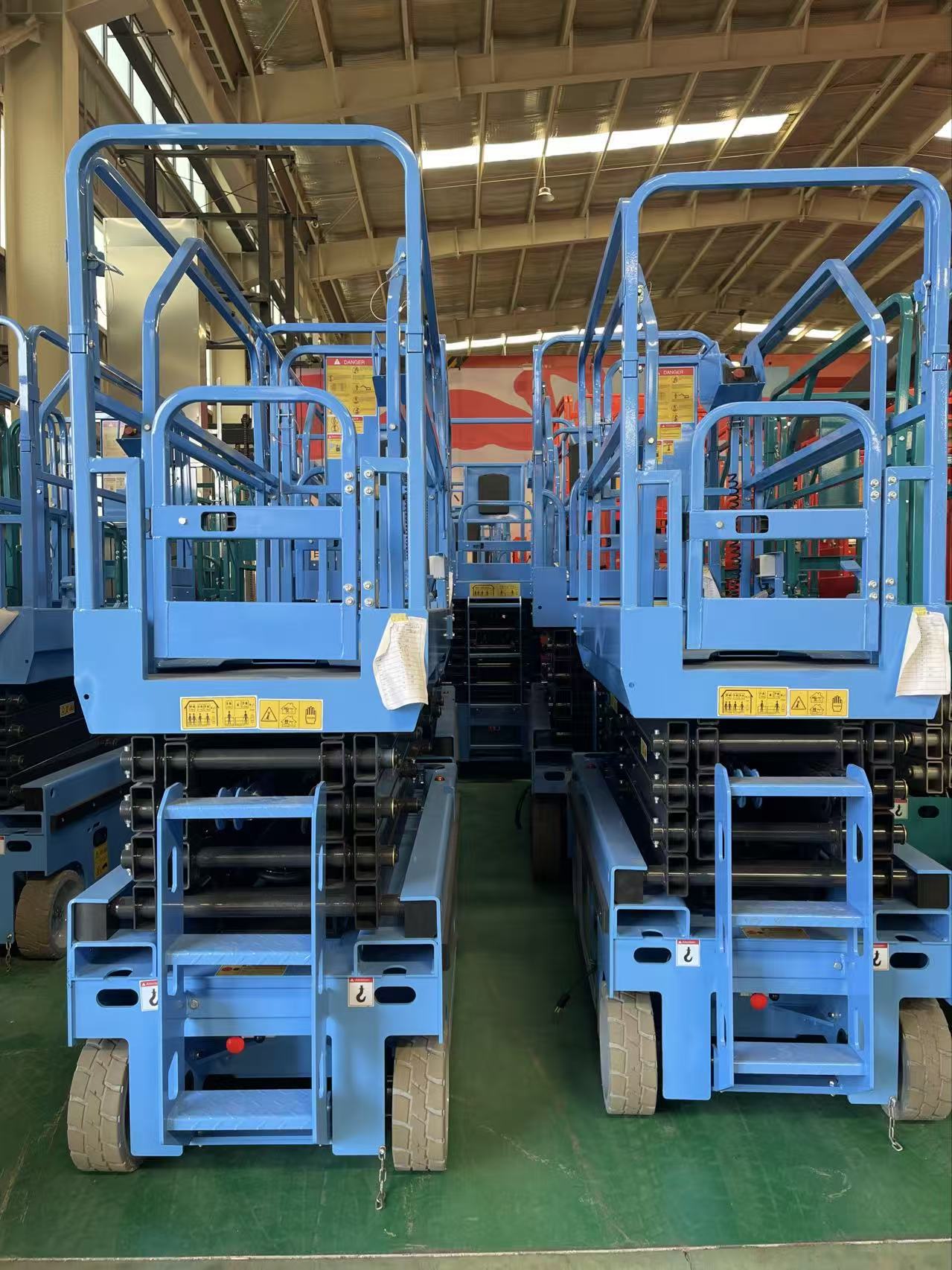

Factory
