Product Details

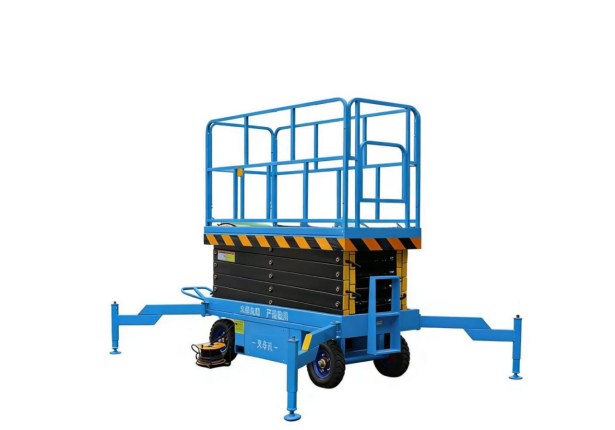

This mobile scissor lift platform adopts a four-wheel mobile scissor structure, featuring flexible movement, stable lifting, and convenient operation. It has a spacious work platform with strong load-bearing capacity, allowing multiple operators to work simultaneously.

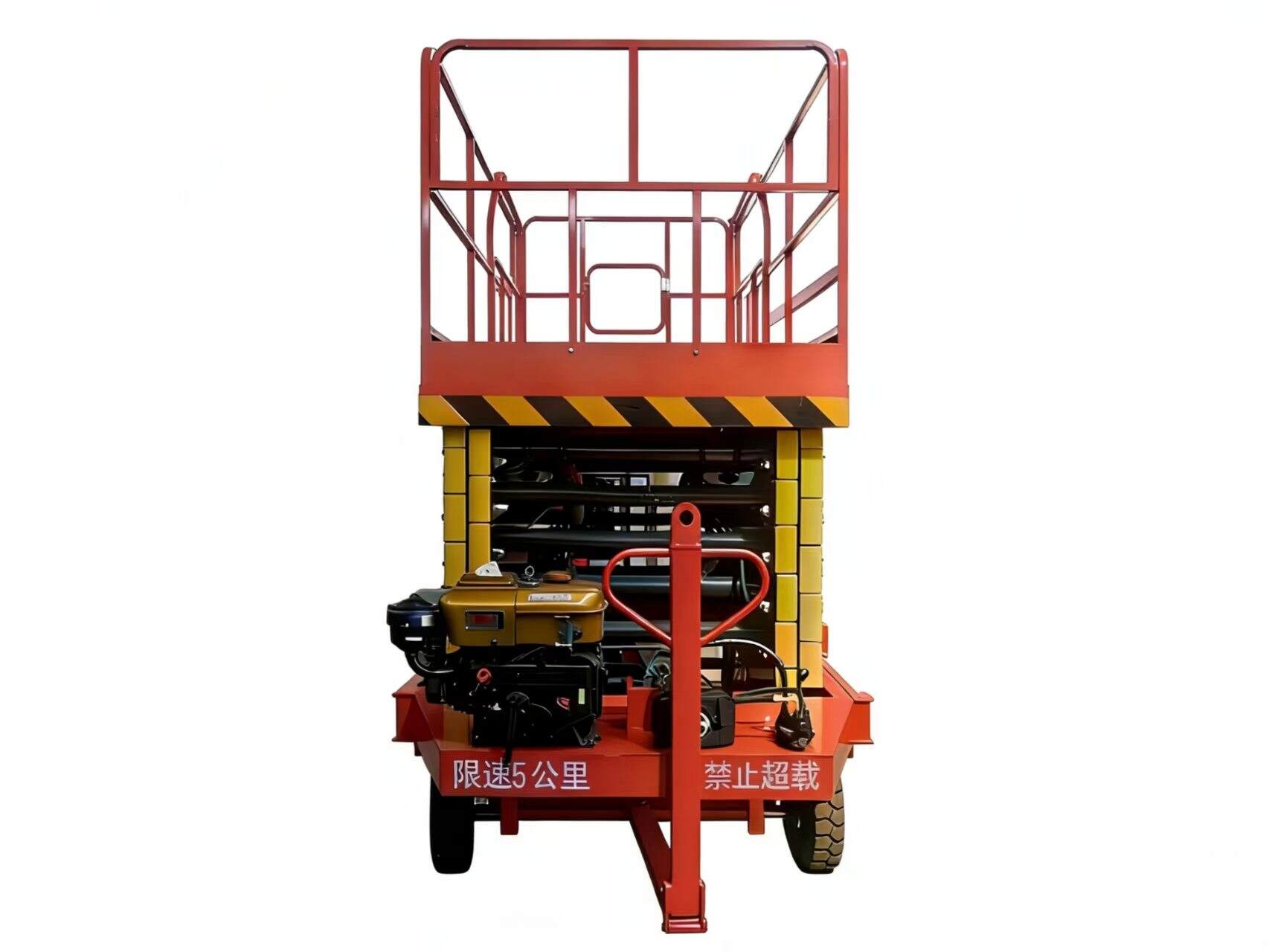

The lift is mainly driven by electro-hydraulic power, and can also be equipped with a manual hydraulic lifting device as required. It supports a variety of power configurations, including AC power, DC power, AC/DC dual power, and diesel engines. Movement modes include manual movement, assisted manual movement, and traction movement.
The equipment is equipped with dual limit switch protection, hydraulic pipeline anti-burst device, leakage protection, overload safety protection, and emergency lowering function in case of power failure, ensuring high safety performance and completely eliminating potential hazards during operation. The product is user-friendly, intelligent and efficient, easy to maintain, and features a long service life.

Product Parameters

Type

Platform(mm)

Load(kg)

Lifted height(m)

Dimension(mm)

Weight(kg)

Guardrail

power

Pneumatic tire×4

HWSJY2.0-4

2150×1500

2000

4

2300×1720×1330

1500

1100

3.0KW/380V

500-8

HWSJY2.0-6

2100×1500

2000

6

2260×1750×1530

1750

1100

3.0KW/380V

500-8

HWSJY2.0-8

2100×1500

2000

8

2250×1750×1690

2050

1100

3.0KW/380V

500-8

HWSJY2.0-10

2150×1500

2000

10

2300×1750×1850

2250

1100

3.0KW/380V

500-8

HWSJY2.0-12

2550×1500

2000

12

2750×2020×2420

3200

1100

4.0KW/380V

600-9

HWSJY2.0-14

2850×1550

2000

14

3100×2020×2420

3900

1100

4.0KW/380v

700-9


Standard Configuration

Adjustable descent

Removable guardrail

Professional distribution box

Upward adjustable

Professional oil cylinder

Manganese steel structure

Professional pump station

Whole machine spray coating

Solid tire

Detail illustration
